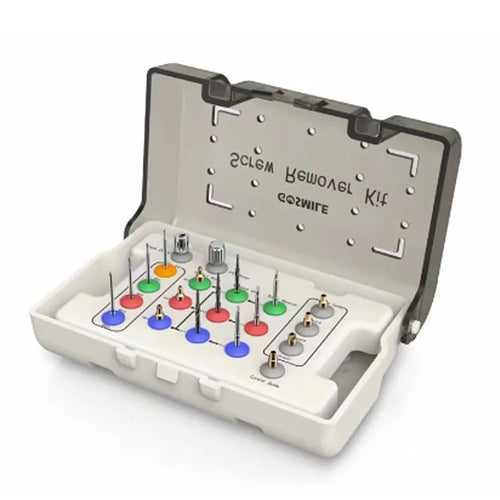

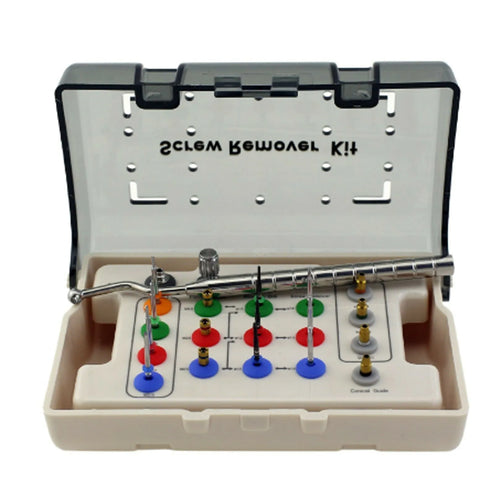

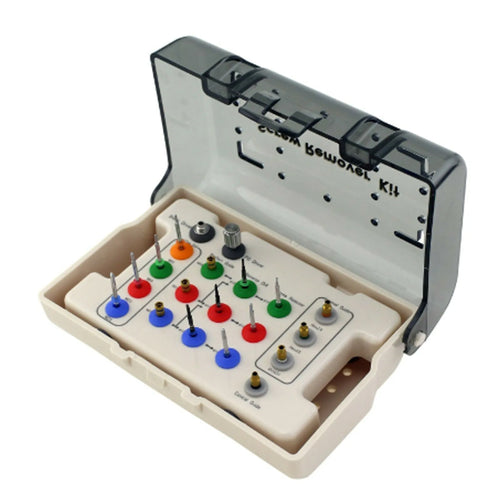

Dental Implant Tool Screw Remover Kit Drill Guide Extraction Sit Broken Fixture Surgical Instrument

Description:

Remove fractured screw without damaging the fixture or pulling out the fixture.
Fractured screw can be removed in 3 minutes.
Various implant system can be applied to Neo Screw Remover kit.
Screw with excessive torque can be removed with ratchet.

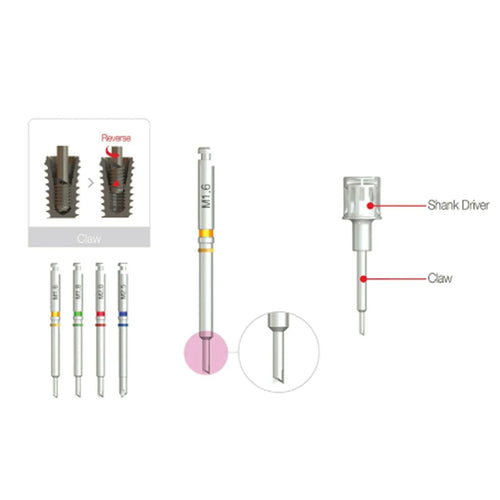

1. Claw
This is a surgical tool that removes a screw that has become fractured inside the Fixture.
After selecting the size that is appropriate for the size of the screw
that is to be removed, it must be used by connecting a guide to the
Fixture (Conical/Internal/External Guide). Then it is connected to the
Shank Driver, and the fractured screw can be removed by rotating by hand
in the reverse direction. If the fractured screw cannot be removed
using the Claw, it must be removed using the Reverse Drill and the Screw
Remover.

CD16  M1.6  CD20   M2.0
CD18  M1.8  CD25  M2.5

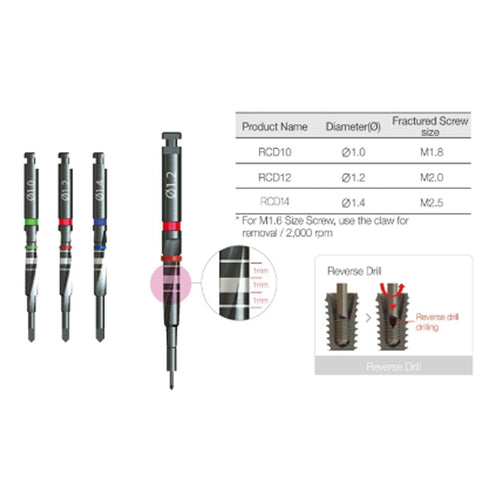

2. Reverse Drill
This is a tool that creates a hole on the fractured face of the Screw that will be used by the Screw Remover.
After selecting the appropriate Reverse Drill for the size of the screw
that needs to be removed, it must be used by connecting a guide for the
fi xture (Perfect/ Conical/Internal/External Guide). The depth of the
drill can be adjusted from 1 mm to 3 mm, because the Drill body has
markings.

The removal of an M1.6 size Screw Should utilize the Claw.
Although diff erent manufacturers produce diff erent sizes of abutment
screws, except in rare cases, typically they utilize screws of Size
M1.6, M1.8, M2.0, or M2.5. (‘M’ stands for a metric screw. The number
indicates the external size of the screw. For example, “M1.6 Screw”
indicates that it is a metric screw the external diameter of  Which is
1.6 mm).

RCD10 Ø 1.0 M1.8
RCD12 Ø 1.2 M1.8
RCD14  Ø 1.4  M1.8

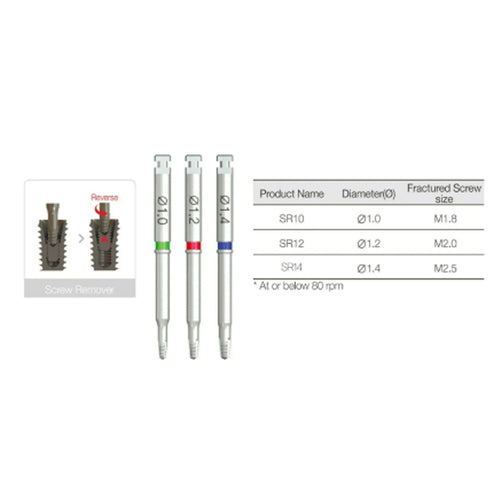

3. Screw Remover
This is a device that removes a fractured screw. Insert a Screw Remover
that is appropriate for the size of the hole that has been formed using
the Reverse Drill and rotate at a low speed (at or below 80 rpm) in the
reverse direction.
The Screw Remover was designed in a tapered shape so as to increase, as
it turns, the amount of friction, which is necessary to loosen the
Screw.


SR10  Ø 1.0  M1.8
SR12 Ø 1.2 M2.0
SR14 Ø 1.4 M2.5

4. Shank Driver
This is a surgical tool that was designed to be connected to the Screw
Remover to allow the use of the hand, Torque Wrench, or Ratchet.

SHD00 For Hand or Ratchet
Screw Remover
(SR10, SR12, SR14)

5. Perfect Guide & PG Hand Driver
The Perfect Guide acts as a Guide for the Reverse Drill. It is used when
the screw is fractured at the lower part of the female screw inside the
Fixture. It is connected to PG Hand Driver and is directly applied to
the Fixture female Screw.
The Perfect Guide can be safely used because it has a stop structure
inside that prevents the Reverse Drill from drilling more than 2 mm.

6. Conical, Internal, External Guide
They act as the Guide when using the Reverse Drill. They are used when
the Perfect Guide cannot be used, or if the screw was fractured at a
location deeper than 2 mm into the lower part of the female screw inside
the Fixture.
The Guide appropriate for connecting to the Fixture must be selected.

7. SR Driver Holder

This can be easily affixed to the Fixture by connecting it to the 3.5
Double Hex part of the Conical, Internal, or External Guide.
